Our Autonomous VTOL Drone Series combines vertical takeoff and landing, efficient wing-borne cruise, stable hovering, and mission-adaptable payloads in electric tiltrotor platforms. From compact field operations to higher-capacity delivery and monitoring missions, the series is designed for speed, operational reach, and flexible deployment.
Tiltrotor flight combines runway-free vertical operation with fast, efficient forward flight for broader mission coverage.
Configurable aircraft and payloads support emergency delivery, agriculture, mapping, surveillance, patrol, cargo, and marine operations.
Experience the flight architecture and mission flexibility that make this VTOL series a powerful platform for real-world aerial operations.
Vertical takeoff, landing, and hover capability enable deployment where conventional fixed-wing aircraft cannot operate.
Tilting propulsion transitions the aircraft from vertical lift to efficient forward flight for speed and operational reach.
The AF100 is listed at up to 22 m/s and 30 km, while the AF200 is listed at up to 20 m/s and 40 km.
Hover capability supports close observation, precise positioning, and controlled vertical landing at the mission site.
Mission configurations support delivery containers, optical cameras, thermal imaging, and multispectral sensing.

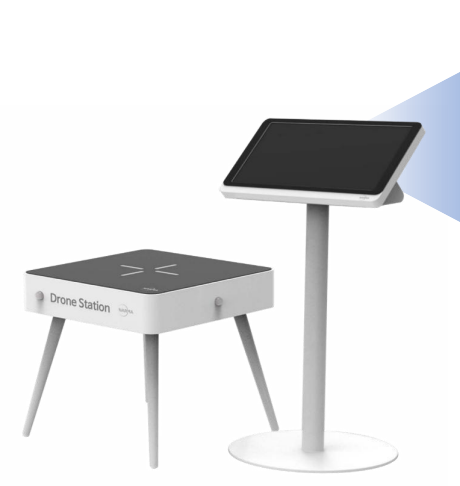

An AF100-compatible station and touchscreen kiosk support predetermined flight paths, pre-takeoff obstacle checks, and Mavlink connectivity.
“An aircraft that can take off vertically, hold position precisely, and then transition into efficient forward flight solves one of the hardest tradeoffs in drone design. This VTOL series brings speed, reach, and mission flexibility into a single adaptable platform.”
Vertical when space is limited. Efficient when distance matters.
Conventional multicopter drones offer vertical operation but can be constrained by speed and range. Traditional fixed-wing platforms travel efficiently but generally require more launch and landing space and cannot hover. Tiltrotor VTOL architecture bridges these operating modes for delivery, monitoring, mapping, agriculture, emergency response, and other field missions.
Flexible Aerial Operations
Vertical access meets long-range mission performance.

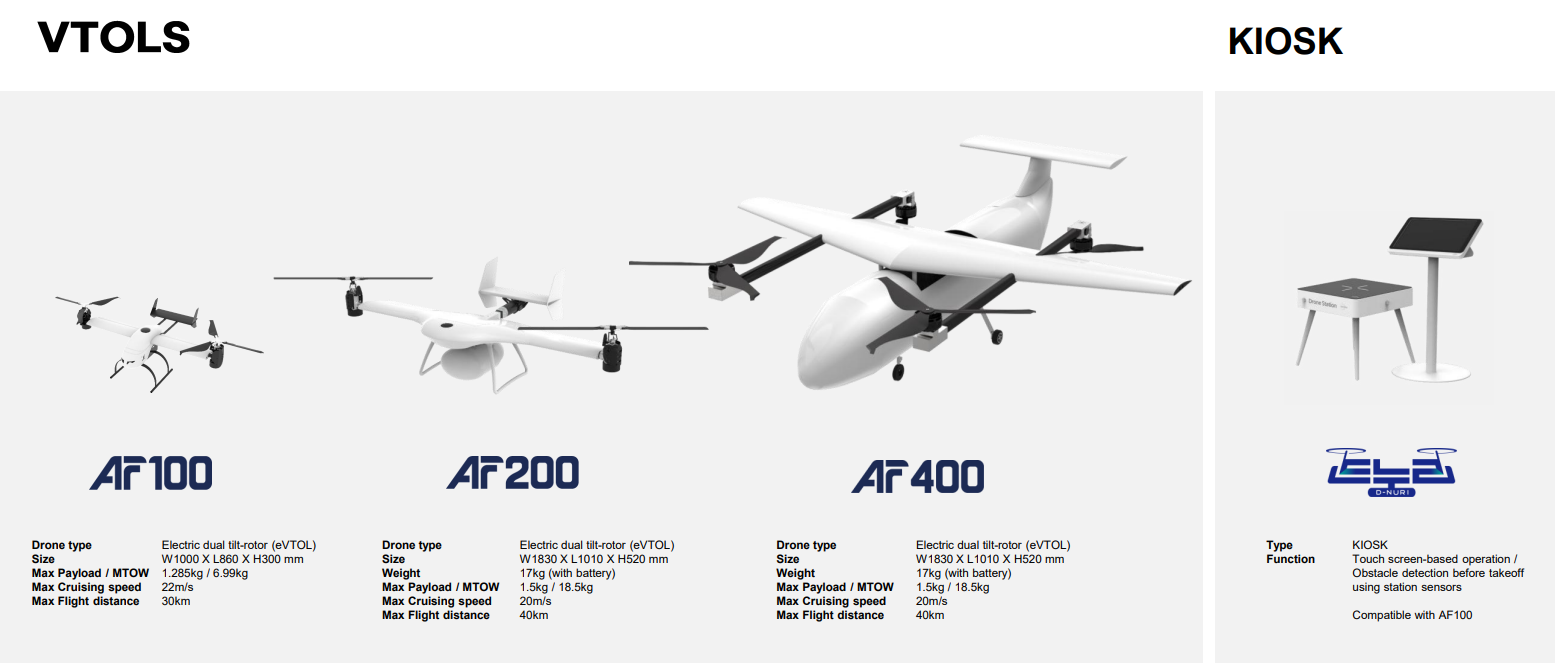

| Model | Platform and size | Performance listed in the source deck |
|---|---|---|
| AF100 | Electric dual tiltrotor eVTOL; W1000 x L860 x H300 mm | Max payload 1.285 kg; MTOW 6.99 kg; max cruising speed 22 m/s; max flight distance 30 km |
| AF200 | Electric dual tiltrotor eVTOL; W1830 x L1010 x H520 mm; 17 kg with battery | Max payload 1.5 kg; MTOW 18.5 kg; max cruising speed 20 m/s; max flight distance 40 km |
| AF400 Cargo / Marine | Electric lift-tilting VTOL; W4000 x L3500 x H1000 mm | MTOW 110 kg; payload 20 kg; cruising speed 80 km/h; flight distance 50 km under standard conditions with full charge |
| Configuration | Website-ready application summary |
|---|---|

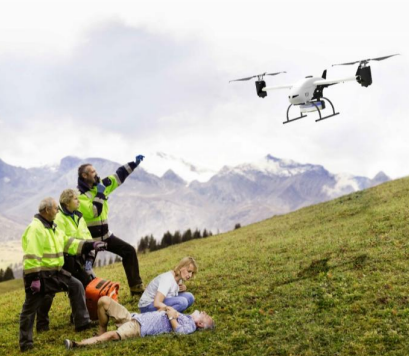

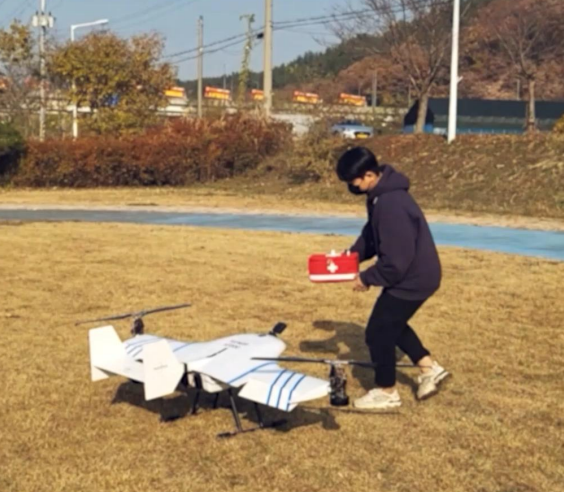

| AF100-AED | Emergency AED delivery; source deck lists a 5 km delivery configuration with an AF100-compatible station and kiosk |

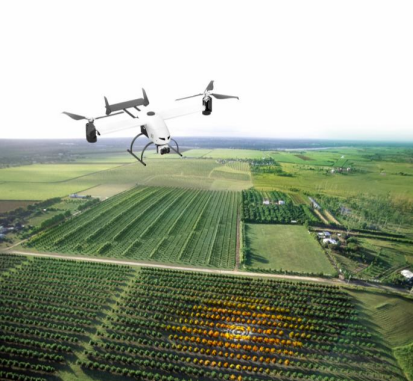

| AF100-AGRI | Agricultural monitoring with a multispectral camera; source deck lists 27 km flight distance for this configuration |

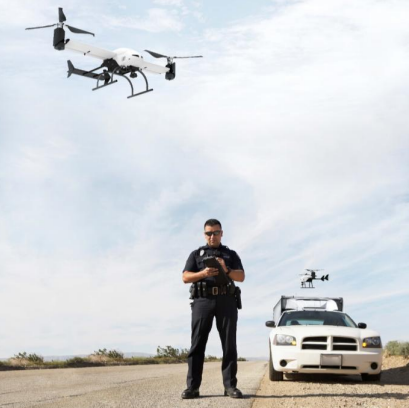

| AF100-PATROL(P) | Patrol and surveillance with an optical camera; source deck lists 30 km flight distance and operation from moving ships or vehicles |

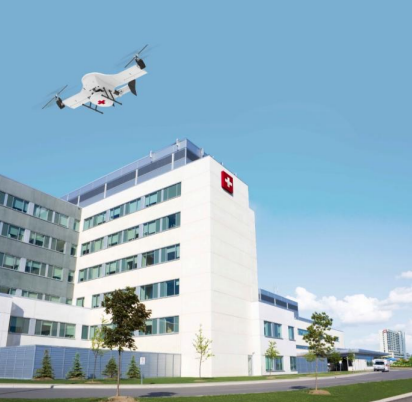

| AF200-AMBULANCE | Medical transport configuration for blood or other time-sensitive payloads |
| AF400-CARGO | Higher-capacity cargo configuration for logistics and industrial applications |

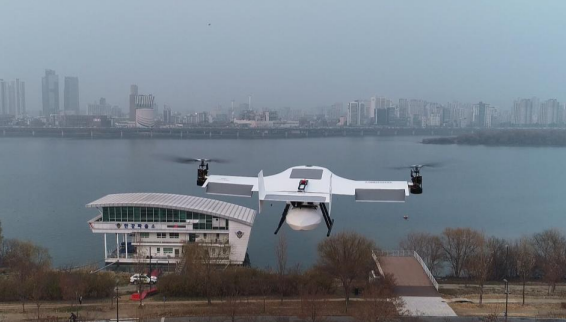

| AF400-MARINE | Marine monitoring configuration for wide-area observation and vessel-related missions |
Contact our team to discuss mission requirements, payload integration, operating environments, distribution opportunities, or a tailored product demonstration.
